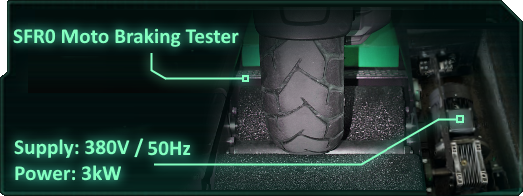

S.F.R. 0 - Brake tester for Motorcycles and Mopeds (Class I)

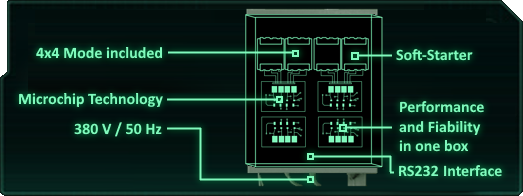

The brake testing stand is equipped with cutting-edge technology to provide precise and reliable results in testing the braking system of motorcycles and mopeds. A major advantage of our system, in addition to performance, the latest technology, and reliability, is its entirely domestic production. We offer fast, component-level service that results in maintenance at very competitive prices. This top-tier system is designed to accurately measure the efficiency of braking force, weight, and all additional parameters, ensuring compliance with safety standards. With a compact and durable design, it is ideal for inspection stations and service centers. This system provides detailed and accurate reports that help maintain optimal braking system performance, enhancing the safety and confidence of riders. The system consists of three parts: the automation block, the mechanical part, and the Eco Electro Platform software. 1) Automation Block S.F.R. 0
The automation block aims to centralize all the data and signals provided by the mechanical part. It offers primary filtering, implementing reliable solutions for managing, processing, and transmitting data to the Eco Electro Platform software.
Characteristics:
- supply voltage 380V/50Hz
- soft-starter module optional
- modular system easy to troubleshoot and maintain
- pedometer
- manometer
- Microchip technology
- external communication mode RS232
- maximum weighed load 500Kg
- accuracy class 2%

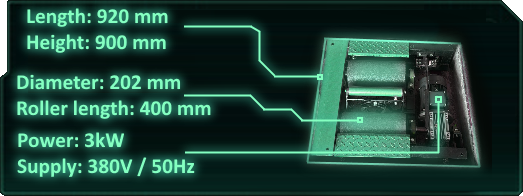

2) Mechanical Part
The mechanical part is built in collaboration with Technozia Industry, and represents one of the top solutions, due to its durability over time. With over 30 years of experience in the field, we manage to construct one of the most appreciated products that competes successfully with Western market products.
Characteristics:
- 8 load cell transducers
- roller diameter 202mm
- roller length 400 mm
- peripheral speed 5.0 km/h
- supply voltage 380V/50Hz
- power consumption 3 kW

3) Integrated into the Eco Electro Platform software
The Eco Electro Platform software integrates most of the brake or emissions measurement devices. It is built from the latest technologies and is always connected to the Eco Electro Service servers. Thus, it is updated and adapted according to the latest legislation as well as market needs. Built and modeled with the help of users, it integrates and manages all critical components that are part of the Periodic Technical Inspection process
Characteristics:
- User-friendly intuitive interface
- Updates and maintenance provided remotely
- Managed remotely via mobile devices
- Built and modeled according to user needs
- Compatible with Linux systems
