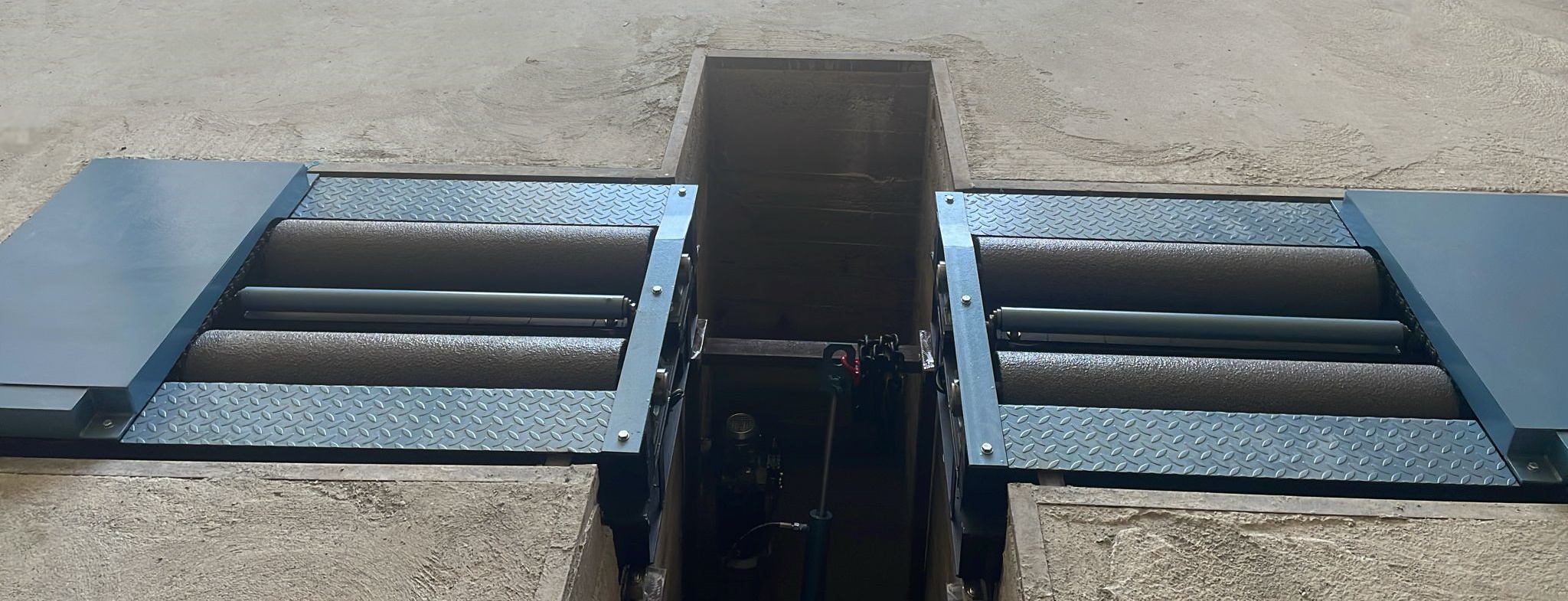

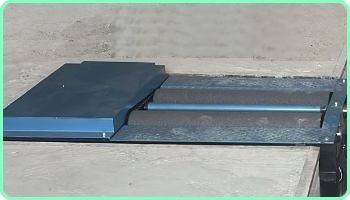

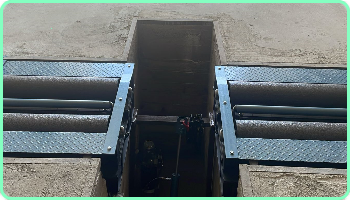

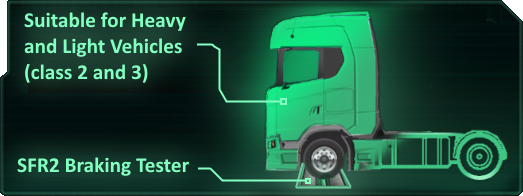

S.F.R. 2 - Brake Testing Stand for Cars and Trucks (vehicle classes II and III)

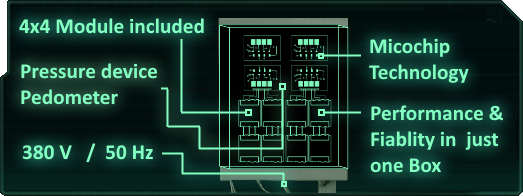

Our latest generation brake testing stand is designed to provide precision, durability, and reliability. It is a domestically built system, designed for both light and heavy-duty vehicles. It offers robust diagnostic capabilities and measures the efficiency of braking systems accurately. As it is domestically produced, we provide fast, component-level service, which results in maintenance at very competitive prices. With a compact and robust design, it is ideal for inspection stations and service centers. The system consists of three parts: the automation block, the mechanical part, and the Eco Electro Platform software. 1) S.F.R. 2 Automation Block
The automation block centralizes all data and signals from the mechanical part. It provides primary filtering, implementing reliable solutions for managing, processing, and transmitting data to the Eco Electro Platform software.
Characteristics:
- supply voltage 380V/50Hz
- pressure device 0-20 bar
- integrable pedometer
- modular system easy to troubleshoot and maintain
- Microchip technology
- external communication mode RS232
- maximum weight measured 13 tons
- accuracy class 2%

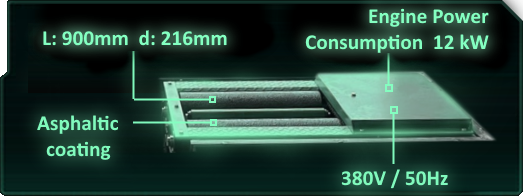

2) Mechanical Part
The mechanical part is built in collaboration with Technozia Industry, and represents one of the top solutions, due to its durability over time. With over 30 years of experience in the field, we manage to build one of the most appreciated products, which competes successfully with Western markets.
Characteristics:
- 8 load cell transducers
- roller diameter 216mm
- roller length 900 mm
- dual peripheral speed: 2.8 km/h and 5.6 km/h
- supply voltage 380V/50Hz
- power consumption 24 kW
3) Integrated into the Eco Electro Platform software
The Eco Electro Platform software integrates most brake or emission measuring devices. It is built from the latest technologies and is always connected to the Eco Electro Service servers. Thus, it is updated and adapted according to the latest legislation and market needs. Built and modeled with the help of users, it integrates and manages all critical components that are part of the Periodic Technical Inspection process
Characteristics:
- User-friendly intuitive interface
- Updates and maintenance provided remotely
- Managed remotely via mobile devices
- Built and modeled according to user needs
- Compatible with Linux systems
